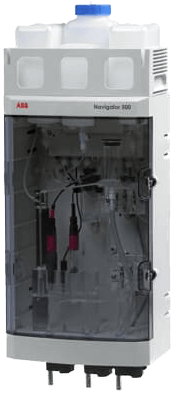

Sodium Analyzer Navigator ASO500
Brand: ABB GroupThe Navigator 500 Sodium analyzer is available as a single stream analyzer or as multi-stream version; enabling up to three different sample streams to be measured.
Featuring a separate sensor section and transmitter, the Navigator 500 Sodium gives users the option of adding up to four single-stream or one multi-stream wet-section to one transmitter, enabling measurement of samples from different measuring points.
This not only offers an economic and compact solution, but allows operators to mix and match other parameters within the Navigator 500 range to reduce installation footprint and cost.
Features- Measure up to 3 different sample streams using a single analyzer
- Automatic electrode regeneration ensures electrode sensitivity when measuring trace sodium levels
- Low reagent consumption and novel design with no moving parts reduces maintenance requirements and minimizes cost of ownership
- Automatic calibration minimizes manual intervention and ensures accuracy
- Grab sample facility enables unattended analysis of manually collected samples
- Intuitive software with full color graphical display
- Data logging and graphical process trending
- Full audit trail capability
- Secure data archiving to SD Card or USB Stick
Specifications
Brand
Measurement Range
- 0.01 to 10,000 ppb
Measurement Method
- Continuous sodium measurement using ISE (Sample time Programmable for multi-stream version)
Accuracy / Maximum Measured Error
- ± 5 % of Reading or ± 0.1 ppb, whichever is greater
Repeatability
- ± 5 % of Reading or ± 0.1 ppb, whichever is greater
Response Time
- 1 to 100 ppb < 4 mins
- 100 to 1 ppb < 4 mins for a 90 % step change
Resolution
- 0.001 ppb
Calibration
- 2-Point, Automatic Calibration
