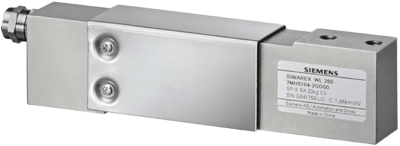

SIWAREX WL260 SP-S SA Single Point Load Cell
Brand: Siemens AGThe SIWAREX WL260 SP-S SA load cell is made of stainless steel and hermetically sealed.
With IP68 protection it is especially suitable for use in harsh environments and can be used with platform scales ranging from 5 to 200 kg with a maximum platform size of 400 x 400 mm.
Features- Particularly suitable for raw environments
- Platform size up to 400 x 400 mm
Specifications
Brand
Sensor Material (DIN)
- Stainless Steel
Accuracy Class
- C3 According to OIML R60
Resolution
- 7.500
Rated Load
- 5, 10, 20, 50, 100, 200 kg
Environmental Protection
- IP67
Operating Temperature
- -35° to 65° C (-31° to 149° F)
Storage Temperature
- -40° to 70° C (-40° to 158° F)
Rated Temperature Tange
- -10° to 40° C (14° to 104° F)
- Platform Scales
- Small Belt Scales
