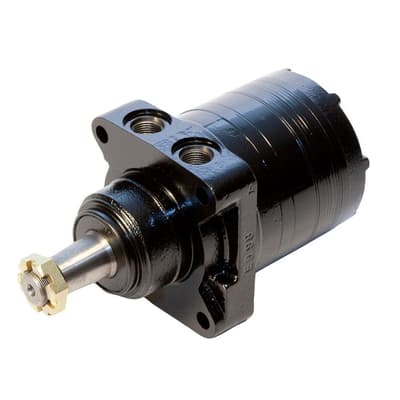

Light Duty Motor - Torqmotor™ TJ Series
Images are representations only.

Light Duty Motor - TorqMotor™ TJ Series

Brand: Torqmotor
Request Information

Torqmotor™ TJ Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for light duty applications such as vehicle propulsion, augers, chain drives and boom rotate.

Intermittent pressures go to 2750 psi. Max dynamic side load capability is 4100 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across the splines for longer life, superior side load capacity, and smooth extra low speed operation.

A high pressure shaft seal is standard. Its innovative design eliminates the need for a case drain. Dependability is based on high quality design and manufacturing. Designed and manufactured in Greeneville, TN USA.
Features
  • Carries up to 4100 lb. dynamic side load at the key
  • Robust construction for longer life
  • Continuous oil flow across internal splines for longer life
  • Superior side load capacity
  • Smooth, extra low speed operation
  • High pressure shaft seal is standard
  • Innovative design eliminates the need for a case drain
  • Dependability based on high quality design and manufacturing

Specifications

Brand

Displacement

  • Motor: 2.2 - 24.0 inch³/rev
  • Motor: 36 - 392 cm³/rev

Maximum Flow Rate

  • 11 to 20 Intermittent (9 to 15 Continuous) gal/min
  • 42 to 75 Intermittent (34 to 57 Continuous) L/min

Maximum Operating Speed

  • Intermittent Flow: 191 to 1141 RPM

Maximum Output Torque

  • 630 to 5562 Intermittent (483 to 3935 Continuous) lb-inch
  • 71 to 628 Intermittent (55 to 445 Continuous) Nm

Maximum Pressure Differential

  • 1740 to 2750 Intermittent (1250 to 2000 Continuous) psi
  • 120 to 190 Intermittent (85 to 140 Continuous) bar

Minimum Starting Torque

  • 460 to 4090 Intermittent (389 to 3080 Continuous) lb-inch
  • 52 to 462 Intermittent (44 to 348 Continuous) Nm

Shaft Diameter

  • 1.25 Nominal (Other Sizes Available) inch

  • Trenchers
  • Zero Turn Mowers
  • Sweepers
  • Wood Chippers
  • Portable Irrigation Systems
  • Post Hole Augers
  • Combine Header Drives
  • Sprayers
  • Scissor Lifts
  • Snow Removal
  • Salt and Sand Spreaders
